728A

from

Hefei Xiangsheng Electronic Co. Ltd

Ask manufacturer about this product

Views: 4128
Last update: 2009-08-15

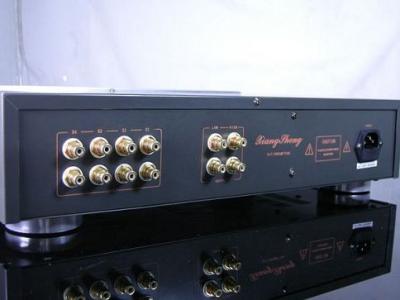

| Photo 1 | Photo 2 | Photo 3 |

Product characteristics:
The pre-amplifier refer to famous Japan Wada Shigeho's Style improved Electric circuit , and adjust the External component parameters according to different bile ducts so that give full play to the advantage of bile duct, cause the machine perform well . The Electric circuit was introduced by professor Shigeho Wada in the early 1960s, having excellent performance. It's sufficient to keep pace with Marantz7.

The 728A pre-amplifier have Bass and Treble Controls and Volume, Balance adjustment on it .

Parameter:
◆ Size:430×80×290mm
◆ Input impedance:100K
◆ Output Impedance:50K
◆ SNR:90dB
◆ Frequency Response:10Hz--30KHz
◆ Distortion: less than 1
◆ tube used :6N3×2,6N11×2,6Z4×2
◆ Weight: 8.5KG

Specifications > Amplifier > 728A
Manufacturer	Hefei Xiangsheng Electronic Co. Ltd
Model name	728A
Catalog No.	728A
Kind of amplifier	Pre-amplifier
Type	Tube
Number of channels	2
Total Harmonic Distortion (THD)	1 %
Signal to noise ratio	90 dB
Frequency response	from 10 Hz to 30 kHz
Number of inputs	2
Source direct	Yes
Balance	No
Treble / Bass	Yes
Loudness	Yes
Source selector	No
Standby mode	Yes
Remote control	No
Phono input	No
Available front panel colors	silver
Available front panel materials	metal
Dimensions (Height/Width/Depth)	8/43/29 cm
Weight	8.5 kg
Product review URL	http://www.xshn.com/en/display.asp?id=24
Manufacturer's product URL	http://www.xshn.com/en/display.asp?id=24
