768A


from

Hefei Xiangsheng Electronic Co. Ltd





Ask manufacturer about this product

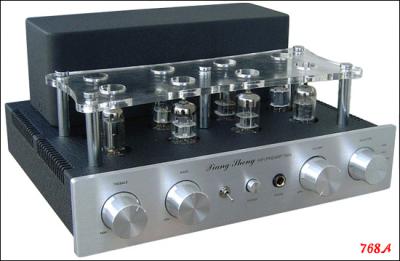

Hefei Xiangsheng Electronic Co. Ltd 768A photo 1
Views: 1969
Last update: 2009-08-16		| Photo 1 | Photo 2 | Photo 3 |

768A Vacuum Tube Headphone/Pre-Amplifier
◆ Five inputs: MM turntable, USB2.0, CD/DVD, AUX, MP3
◆ German WIMA red MKP polypropylene capacitors.
◆ Inspired by classic's schematics, uses two 12AX7, two 6N3, two 6N11 and two 6Z4 tubes, to ensure a wide, small shift, high fidelity sound.
◆ RIAA built for MM cartridges, USB 2.0 decorder to connect with your PC and plays your music collection (compatible with WinXP or later).
◆ Built in headphone out, can connect with 32Ω -600Ω headphone, so you can listen without interrupting others.
◆ Switchable between 220V and 110V, so you can use this all over the world.
◆ It's not only headphone amplifier,but also a pre-amplifier .


Specifications > Amplifier > 768A
ManufacturerHefei Xiangsheng Electronic Co. Ltd
Model name768A
Catalog No.768A
Kind of amplifierPre-amplifier
TypeTube
Number of channels2
ClassA
Output impedance50000 Ohms
Total Harmonic Distortion (THD)1 %
Signal to noise ratio90 dB
Frequency responsefrom 20 Hz to 30 kHz
Number of inputs5
Source directYes
BalanceNo
Treble / BassYes
LoudnessNo
Source selectorYes
Standby modeYes
Remote controlNo
Phono inputNo
Available front panel colorssilver, black
Available front panel materialsaluminium
Dimensions (Height/Width/Depth)14.5/29/23 cm
Weight5.6 kg
Manufacturer's product URLhttp://www.xshn.com/en/display.asp?id=25
768A > Hefei Xiangsheng Electronic Co. Ltd

Reviews/opinions about 768A:

None
