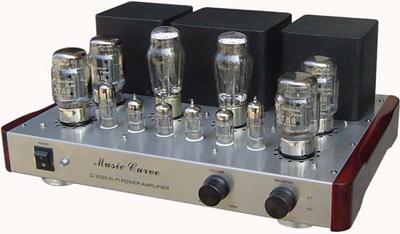

Music Curve D-2020-KT88 Vacuum Tube Amplifier:
◆ Chassis is made of stainless steel of 1.2mm in thickness with wire brushing.
◆ Big metal knob, comb-like feet for reducing shaking.
◆ High-grade RCA terminal with gold plating.
◆ 4Ω and 8Ω power output terminals with gold plating.
◆German red polypropylene capacitive coupling via mkp.
◆ Side panels made from cherry wood.
◆ Blue power indicator.
CHARACTERISTIC: Side panels made from cherry wood. / have Manual Point To Point Welding and PCB as optional.
Power Tube: KT100×4; Tubes for Preamp. Part: 12AT7×2,12AU7×2,6N6T×2;
Tube for rectifying: 5Z3P×2

Specifications > Amplifier > D-2020-KT88
Manufacturer	Hefei Xiangsheng Electronic Co. Ltd
Model name	D-2020-KT88
Catalog No.	D-2020-KT88
Kind of amplifier	Integrated amplifier
Type	Tube
Number of channels	2
Class	AB
Per channel power output	45 Watts
Output impedance	8 Ohms
Total Harmonic Distortion (THD)	1 %
Signal to noise ratio	89 dB
Input sensitivity	500 mV
Frequency response	from 20 Hz to 30 kHz
Number of inputs	2
Source direct	Yes
Balance	Yes
Treble / Bass	No
Loudness	No
Source selector	Yes
Standby mode	Yes
Remote control	No
Phono input	No
Available front panel colors	metalic
Available front panel materials	stainless steel
Dimensions (Height/Width/Depth)	18/43.5/34 cm
Weight	22 kg
Manufacturer's product URL	http://www.xshn.com/en/display.asp?id=5
D-2020-KT88 > Hefei Xiangsheng Electronic Co. Ltd

Reviews/opinions about D-2020-KT88:

None

Add your review/opinion about D-2020-KT88:
